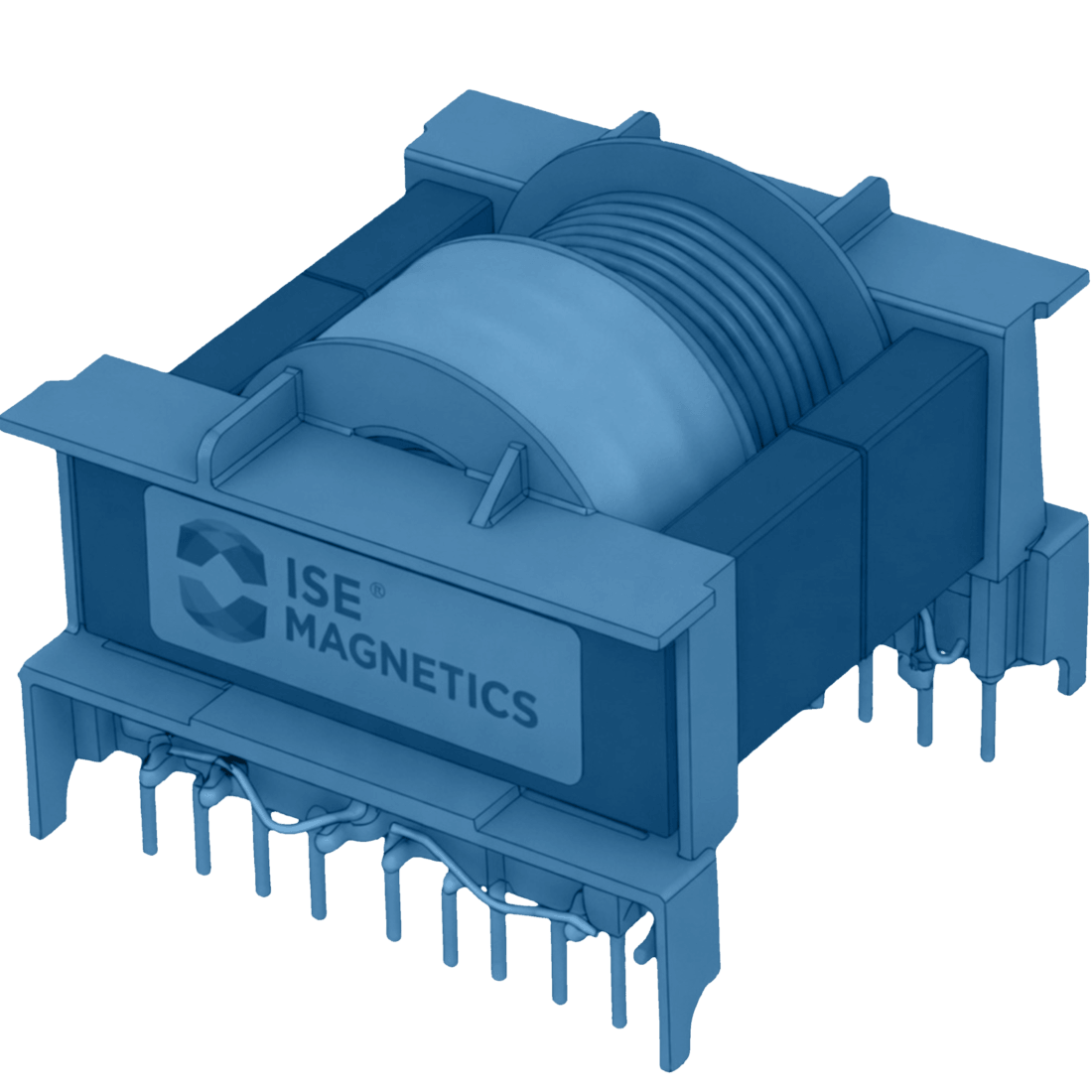

Resonant Transformers - ISE Magnetics

Description

+ Two-chamber design → Built-in leakage inductance/resonant LLC tank → minimize PCB components

+ Multiple voltage levels from auxiliary windings

+ Customize ratio magnetizing inductance to parasitic capacitance → zero voltage switching + gain curve → minimal switching losses

+ Possible bidirectional power conversion (CLLC)

Power ranges:
o   Conventional half-bridge converter → up to 1kW
o   Interleaved half-bridge converter → 1kW+
o   Conventional full-bridge converter → 3.7kW to 6.5kW
o Interleaved full-bridge converter → 10kW+
