MAGNETIC SOLUTIONS

ISE Magnetics focuses on the following four product categories: toroidal, linear, planar, and electro-mechanical modules. Click on one of the four categories below to find the parts we are currently producing for our customers. However, this list is not exhaustive. We are also open to use our expertise to help prospective customers develop other types of inductive parts or to bring new relevant technologies to market.

CURRENT TRANSFORMER

Precise measurement of currents.

  • Range 100/5 200/5 500/5
  • Precision class 0.5

DC STORAGE INDUCTOR

Stores and supplies energy to electrical circuits by using a magnetic field.

  • Current Ratings 12 Adc
  • Resonance Frequency > 5MHz (Typ 10)

AC INDUCTOR

Used to block DC signals or to couple/decouple AC signals. Also used as part of a resonant tank circuit to aid soft switching electronics.

  • LCL FILTER converter side inductor
  • AC current ripple peak-to-peak: 12Apk-pk
  • DC Charging system application

DAB TRANSFORMER

Allows bi-directional use of power converter and provides galvanic isolation.

  • 40 kW
  • At 100 kHz

PLANAR TRANSFORM PCB

Provides excellent Partial Discharge performance and general high voltage isolation.

  • Low power
  • Low cost solution

PLANAR TRANSFORMER LEAD FRAME

Provides compact, high current windings and high-power density.

  • POWER RANGES up to 150 kW
  • Mechanically strong construction

CHOKE

Type of inductor used to block or decouple AC signals.

  • Rm configuration
  • Aerospace application

ANTENNAS

Used to communicate magnetically.

  • 10MHz application
  • Q > 70 (Typ 150)
  • Potential distance 30 cm

FLYBACK TRANSFORMER

Used to induce specific current waveforms.

  • designed for rectified 400Vac mains as supply for flyback convertor
  • Large creepage between primary/secondary windings

LLC TRANSFORMER

Transformer with an integrated resonance inductance obtained through controlled magnification of the leakage inductance.

  • 300 W integrated leakage 70uH
  • Outputs 2x15Vdc / 10A LLC frequency range 100-200kHz

HIGH VOLTAGE TRANSFORMER

Used to create high voltages.

  • Extreme compact model
  • > 1.5 kV

DC CHOKE and AC CHOKE

An inductor used to block higher-frequency alternating currents (AC) while passing direct current (DC) and lower-frequency ACs in a circuit.

  • DUAL USE (AC and DC) with mono-size
  • Off grid application

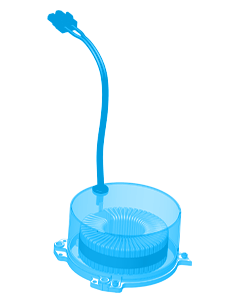

FILTER CHOKE MODULE

Used to block unwanted noise signals or reduce ripple currents in electronic circuits.

  • Easy mount and connect solution
  • EMC Shielded

CMC MOULDED CONNECTOR

Used to block unwanted high frequency noise signals that are present in or “common” to multiple power lines without affecting the lower frequency, or DC, signals.

  • Common mode inductor
  • Providing off-board CMC functionality

ELECTRO MAGNET

Device capable of creating a temporary high magnetic field by applying an electrical current through a wire/coil. The field disappears when the current stops flowing in the wire/coil.

  • Compact model
  • High friction and pulling force
  • Extremely reliable

Design Request

Do you require a custom-made inductive component and want to know how we can help you? Please submit a design request.
