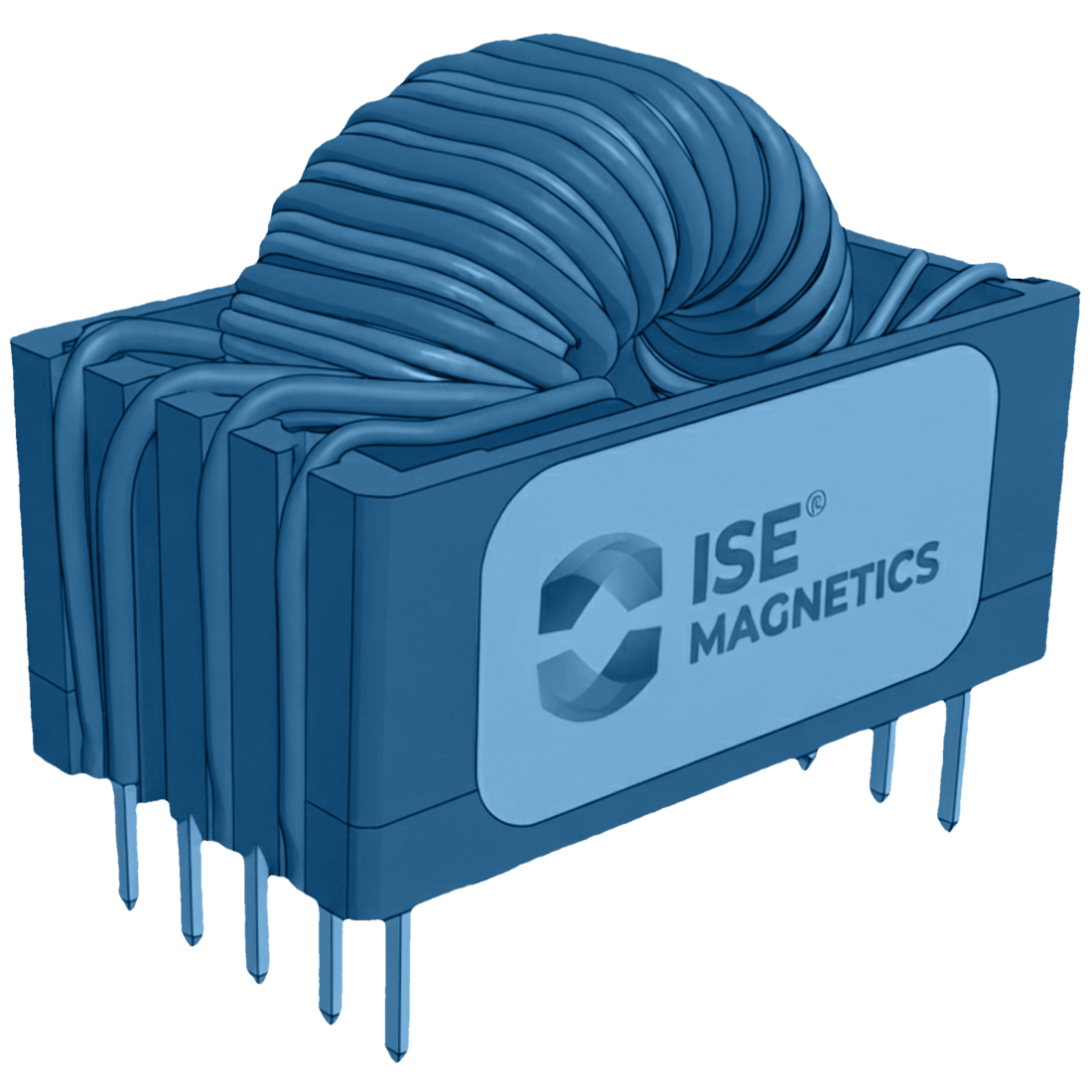

Description

How it behaves

  •

What do Push-Pull Transformers aim to solve

  •

- Generally more expensive than both flyback and pulse transformer

+ Control over stored energy release to output → Adjusting duty cycle

  • Power ranges:
          o   High voltage (>110V) push-pull converter     → < 2kW
          o   Low voltage (12V-48V) push-pull converter  → < 3kW

Voltage (RMS/peak) 500V / 600V
Current (RMS/peak) 50A / 60A
Maximum Power 3kW
Inductance 50µH - 500µH
Leakage Inductance ~10µH
Switching Frequency 40kHz - 200kHz

  • LED lighting systems
  • Industrial equipment
  • Medical devices
  • Telecommunication equipment
  • Renewable energy
