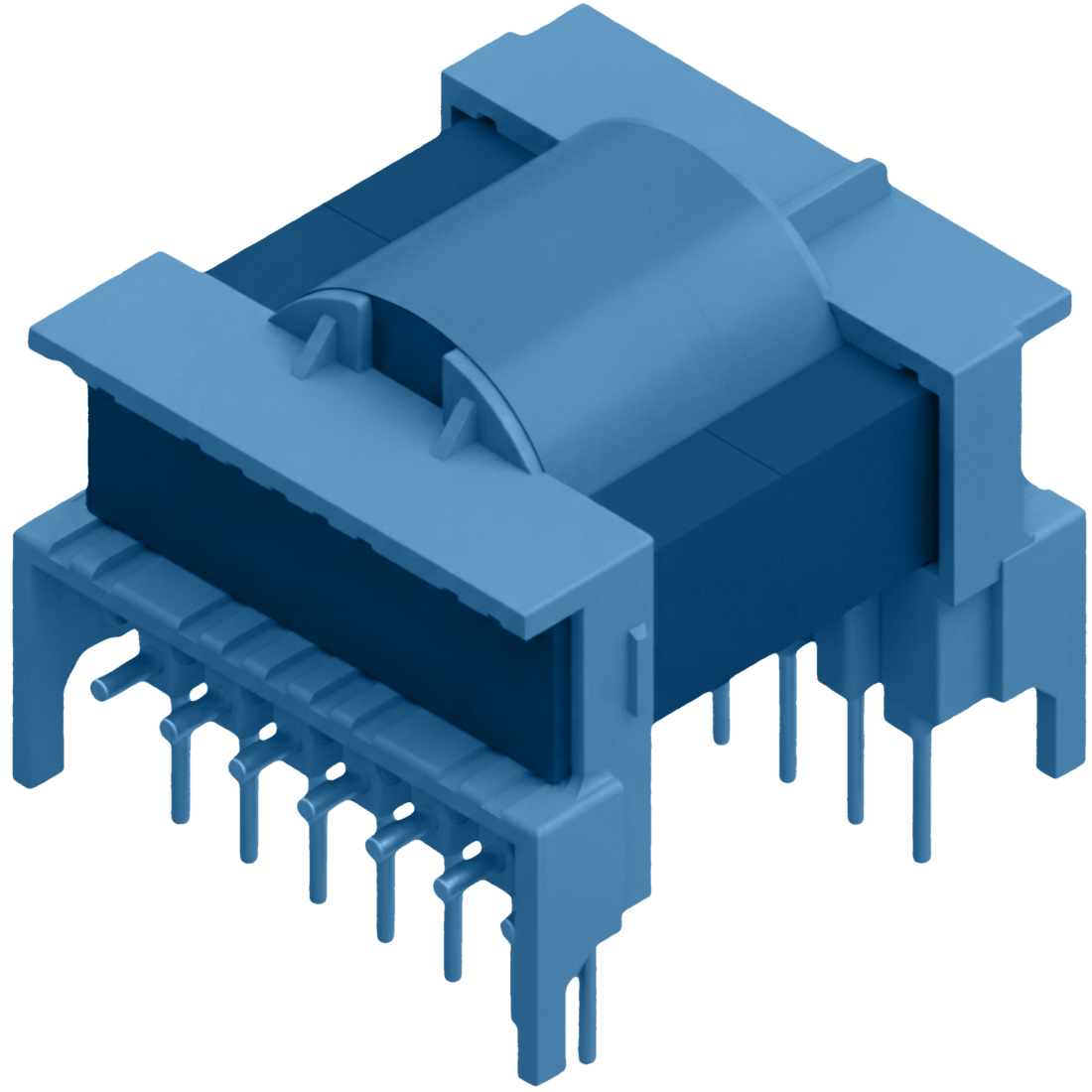

Description

How it behaves

  •

What do Flyback Transformers aim to solve

  •

+ Economical way to provide galvanic isolation

+ Control over stored energy release to output
  → Adjusting duty cycle provides wide input voltage range

+ Multiple voltage levels available from auxiliary/secondary windings

+ Dedicated snubber winding can attenuate primary switch voltage stress

  • Power ranges:
          o   Conventional flyback converter → <150W
          o   Interleaved flyback converter → up to 500W

Voltage (RMS/peak) 325V / 350V
Current (RMS/peak) 5A / 10A
Maximum Power 150W
Inductance ~ 750µH
Leakage Inductance ~ 10µH
Switching Frequency 20kHz - 100kHz

  • DC-DC flyback converters
  • AC-DC converters
  • Computer power supplies
  • LED drivers
