Description

How it behaves

  •

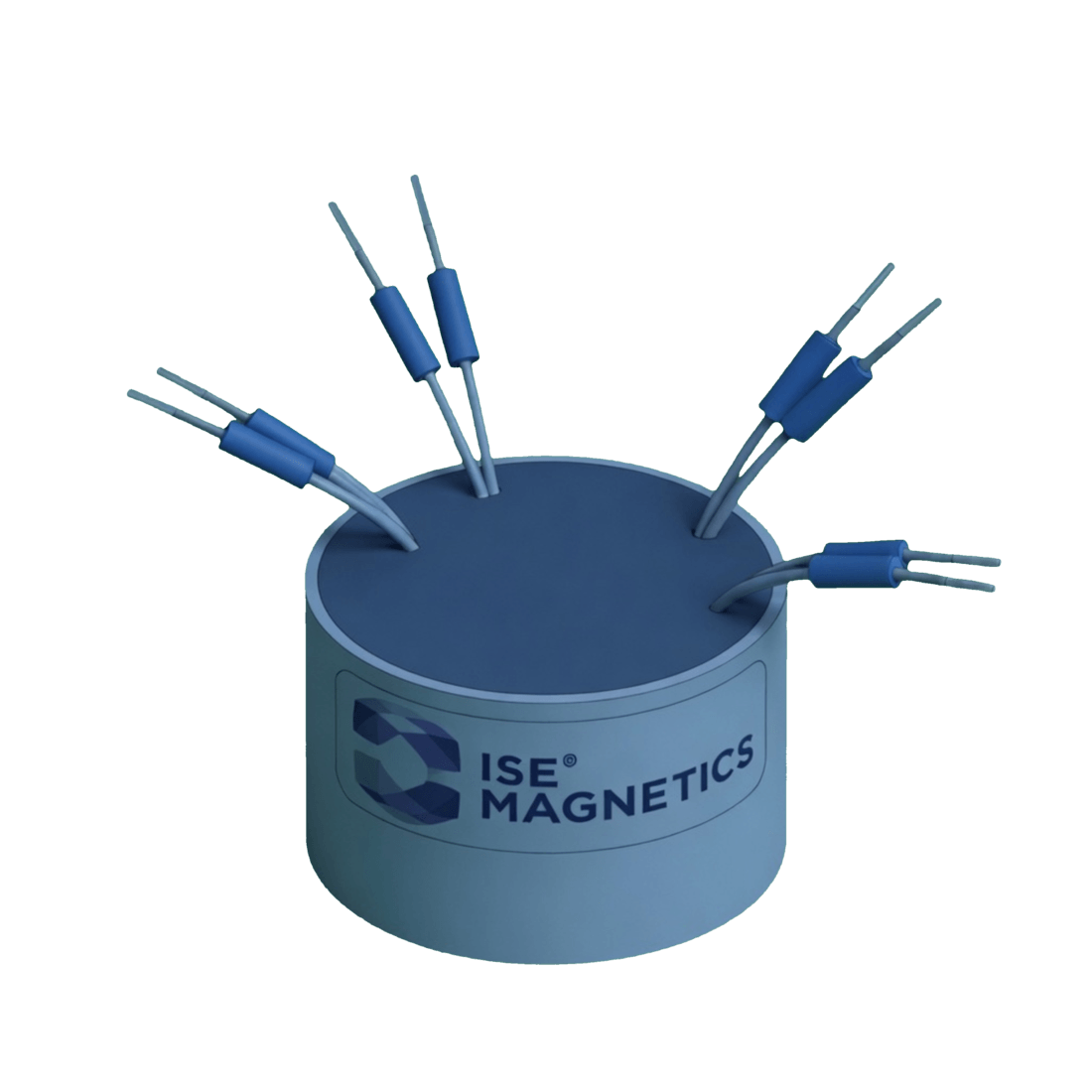

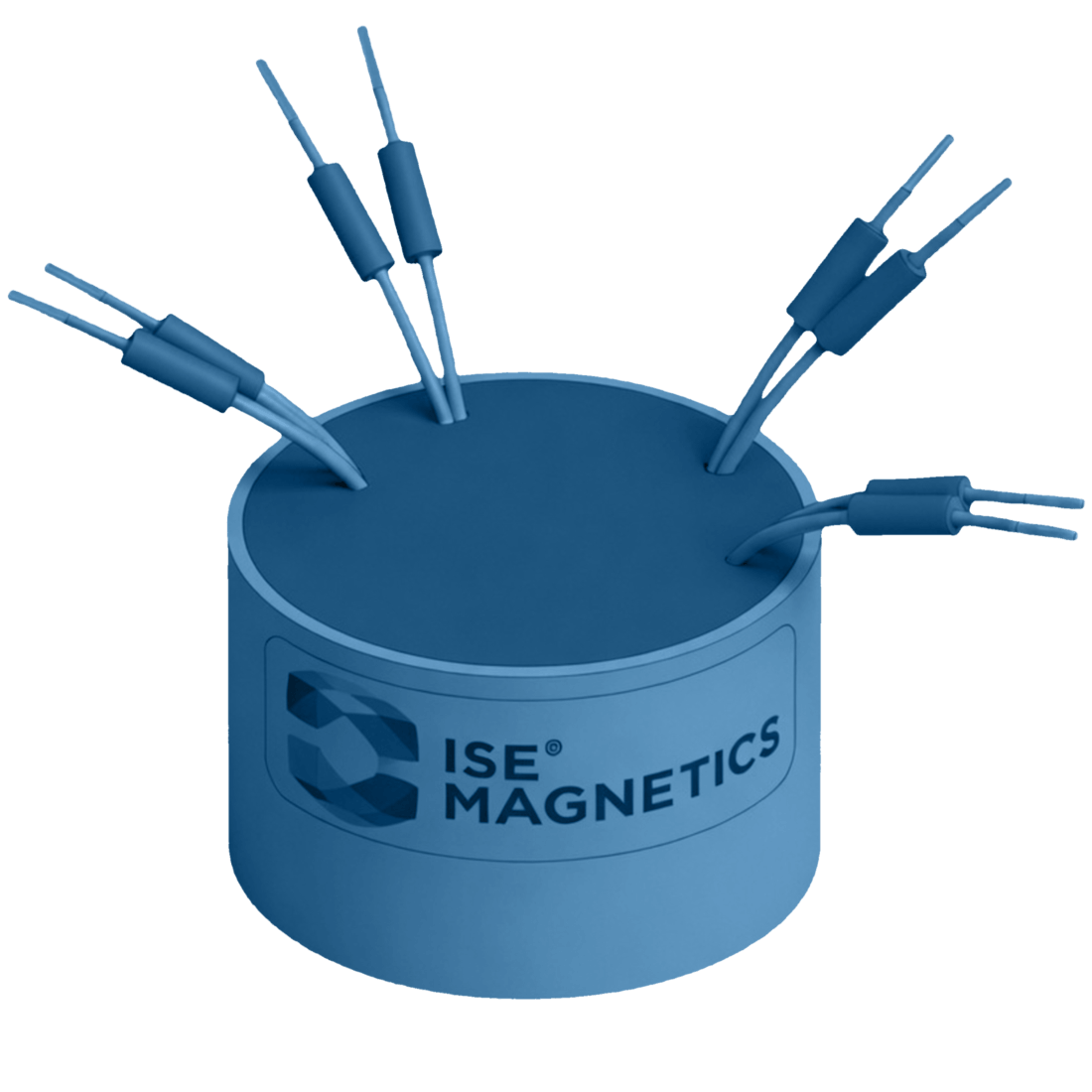

What do Multi-Component Potting Assemblies aim to solve

  •

  • AC circuit filter → attenuate high frequency noise, in series with current pathway, from harmonics in AC current → “AC choke” or “ AC power choke”
  • Maintain inductance over specified frequency range

+ Low parasitic capacitance → High self-resonant frequency > 5MHz *

* High inductance or inductors with many turns → lower self-resonant frequency

Voltage (RMS/peak) 400V / 425V
Current (RMS/peak) 150A / 165A
Current Ripple ~ 10A - 15A
Maximum Power 60kW
DC Resistance ~10mΩ
Inductance ~ 300µH
Q Factor 10 - 15
Frequency 50Hz-70kHz

  • Passive filters
  • Resonant and phase-shift converters/inverter topologies
